SPECIFICATIONS

24 units gross weight (Kg): 18.44/box

Brand Name: LUCKING DOOR

Certification: CE

Choice: yes

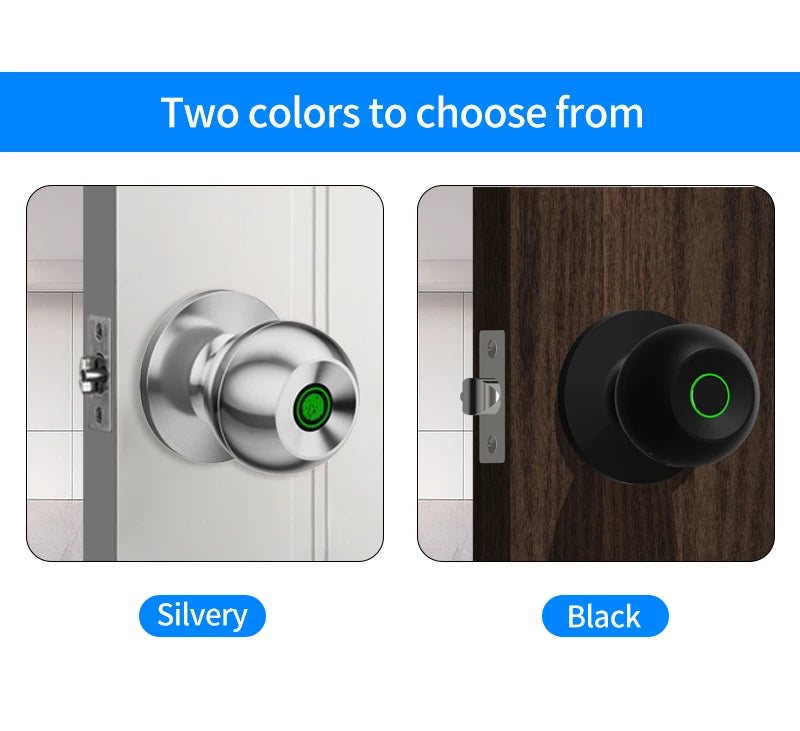

Color: Stainless steel brushed primary color

Connectivity: Bluetooth

Doorknob Funcition: Biometric,Key & Keypad

Fingerprint pixels: 140 * 96

Fingerprint resolution: 508dpi

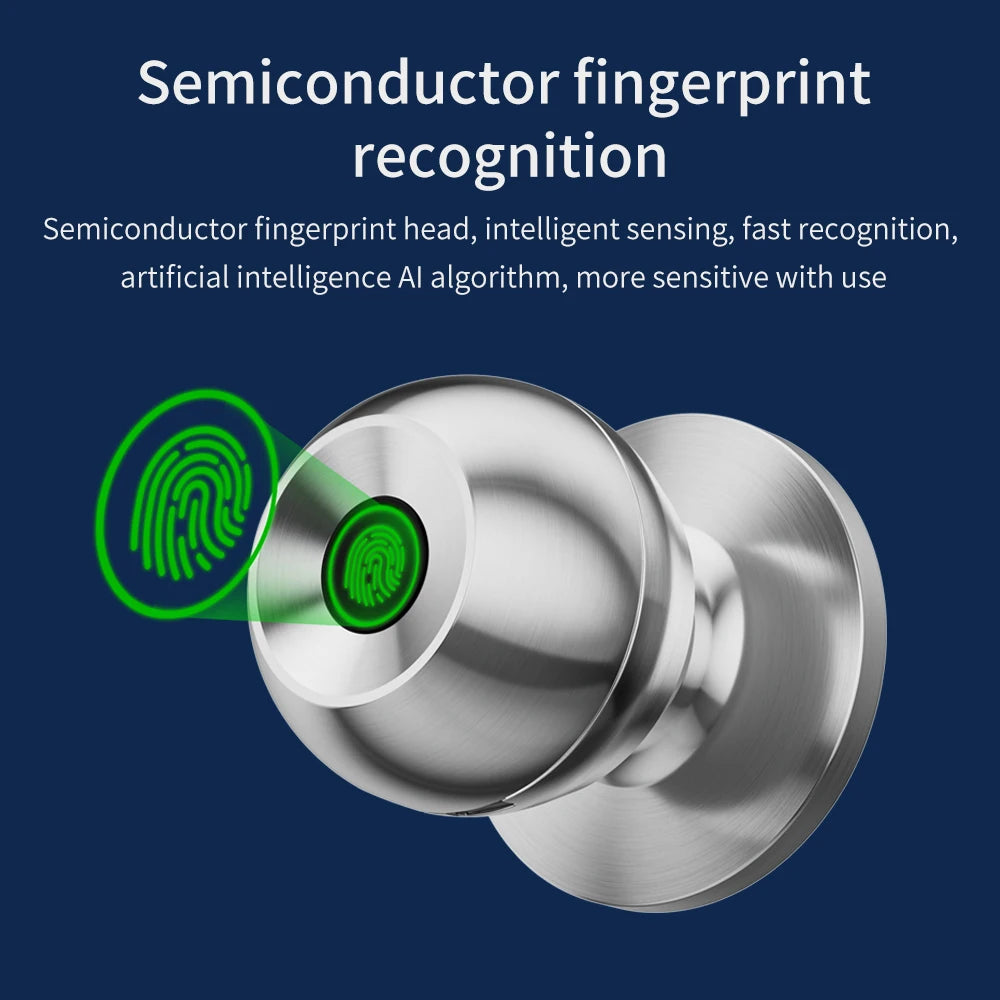

Fingerprint specifications: Semiconductor fingerprint+LED breathing light fingerprint: 20 pieces

Finish Type: Polished

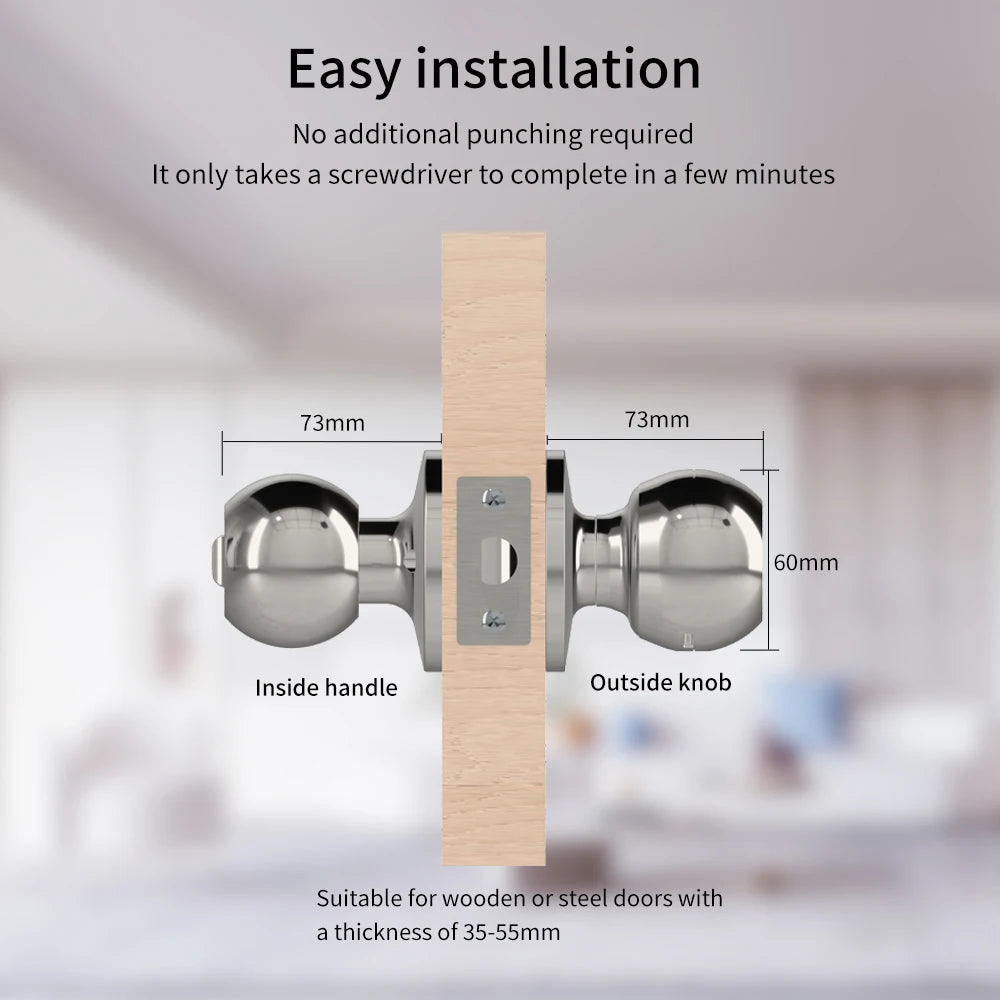

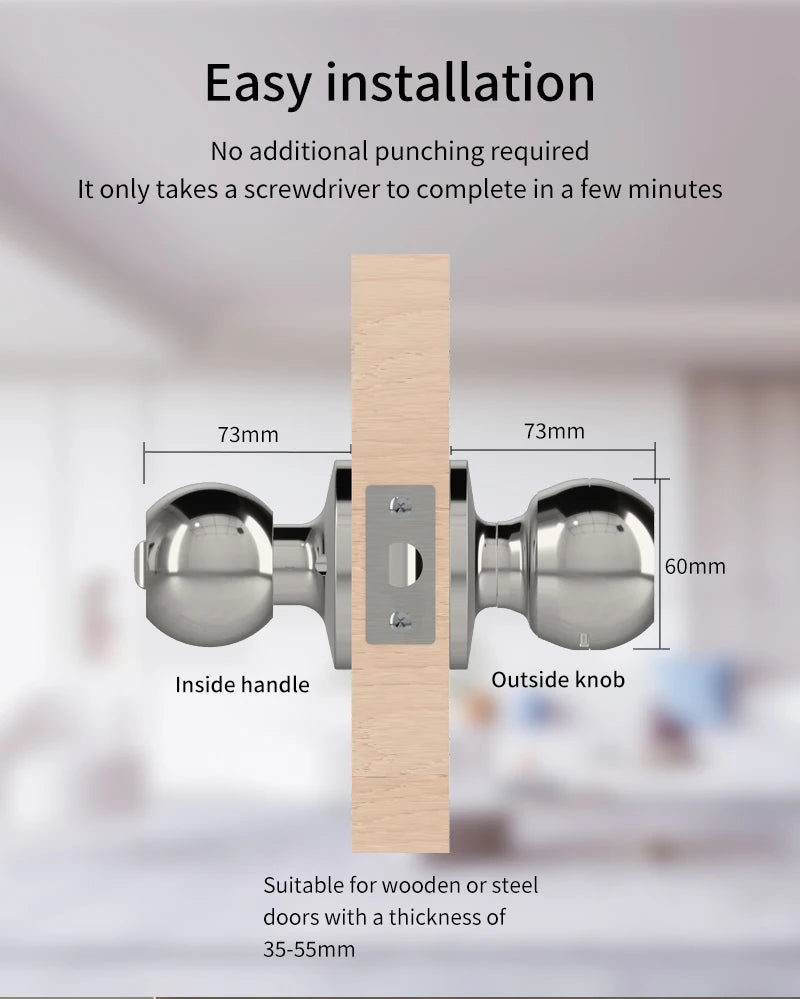

Fit Door Thickness: 33mm-55mm

Free fall test: Drop height: 0.76m Drop frequency: Cement floor, each of the 6 surfaces has dropped once

Gross weight per unit (Kg): 0.73/unit

Handle Direction: Direction Reversible

High and low temperature testing: Grade II 55 degrees+/-2 4H -10 degrees+/-3 4H

Hign-concerned Chemical: None

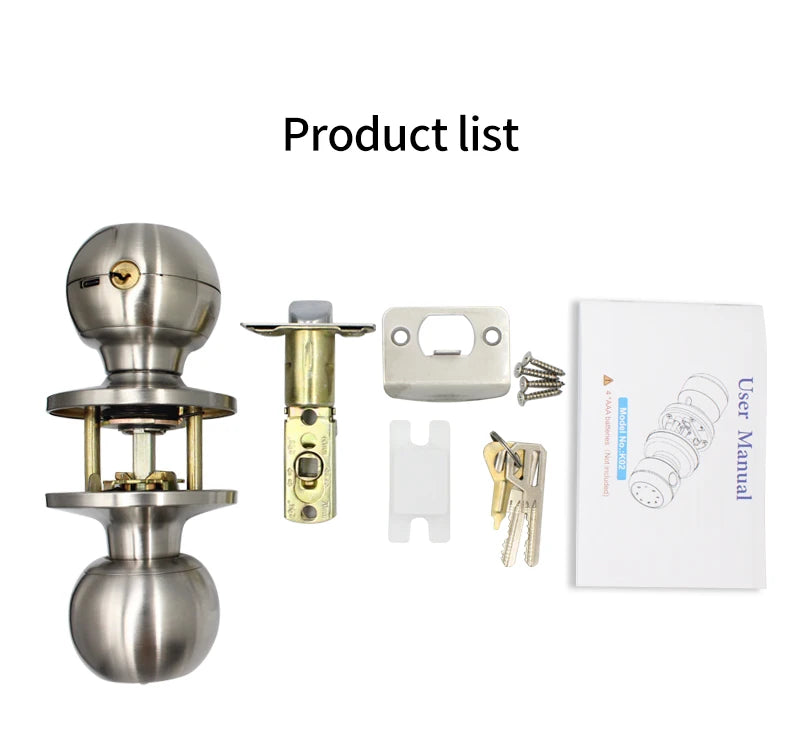

Included Components: screw bag

Inner packaging box: colour printing

Inner packaging method: White box packaging

Inner packaging size: L230mm*W98mm*H84mm

Life test: 100000 times

Lock core: Pinball lock core

Low power alarm function: 3.3 to 0.2V (low voltage alarm)

Material: Stainless steel

Model Number: K10

Net weight per unit (Kg): 0.68/unit

Origin: Mainland China

Power Supply: DRY BATTERY

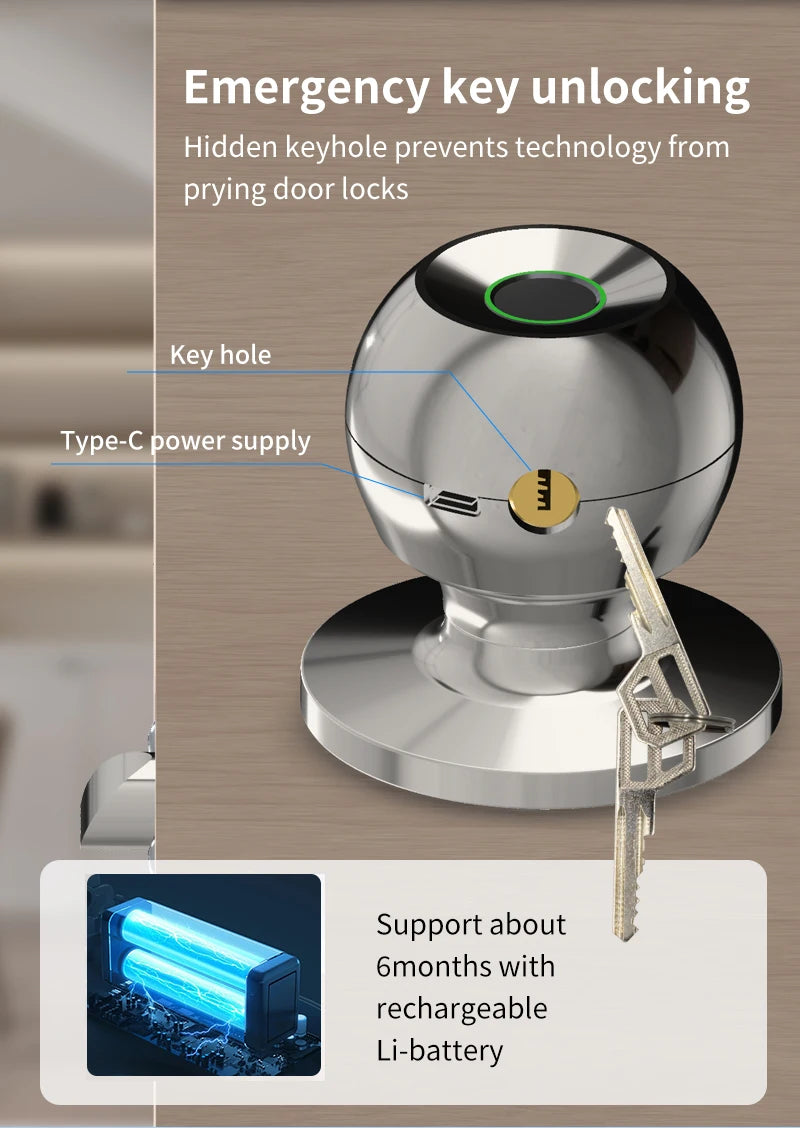

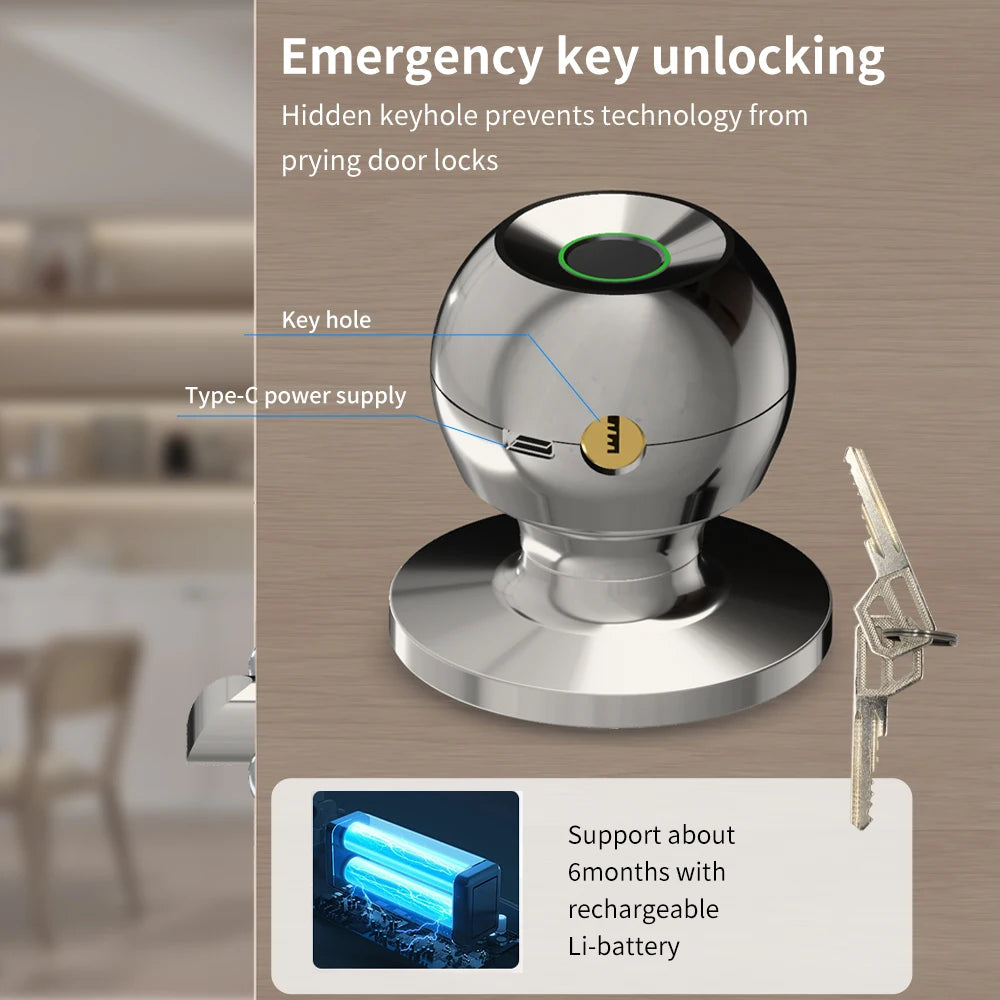

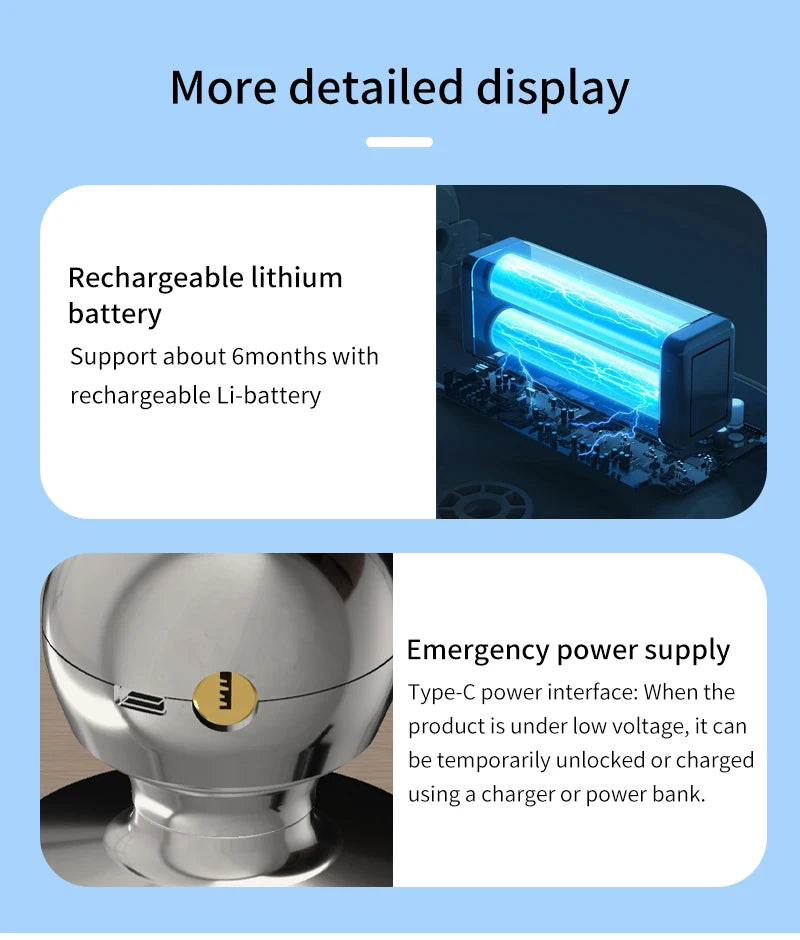

Power supply mode: 400mAh aluminum battery with 3.7V power supply Type-C temporary power supply and charging 5V2A

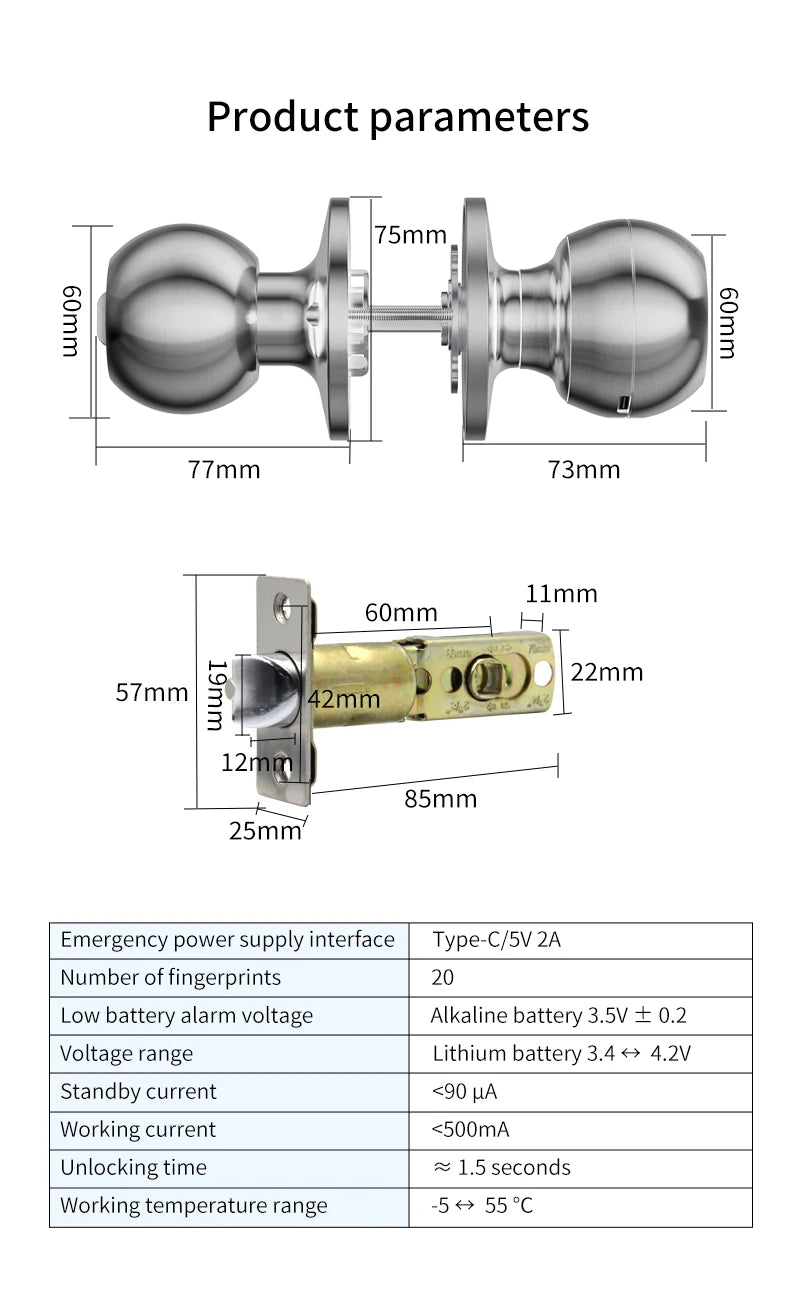

Product dimensions: 75mm*73mm

Protection Level: No Waterproof

Security classification: FCC

Size of inner packaging box: L100mm*W86mm*H230mm

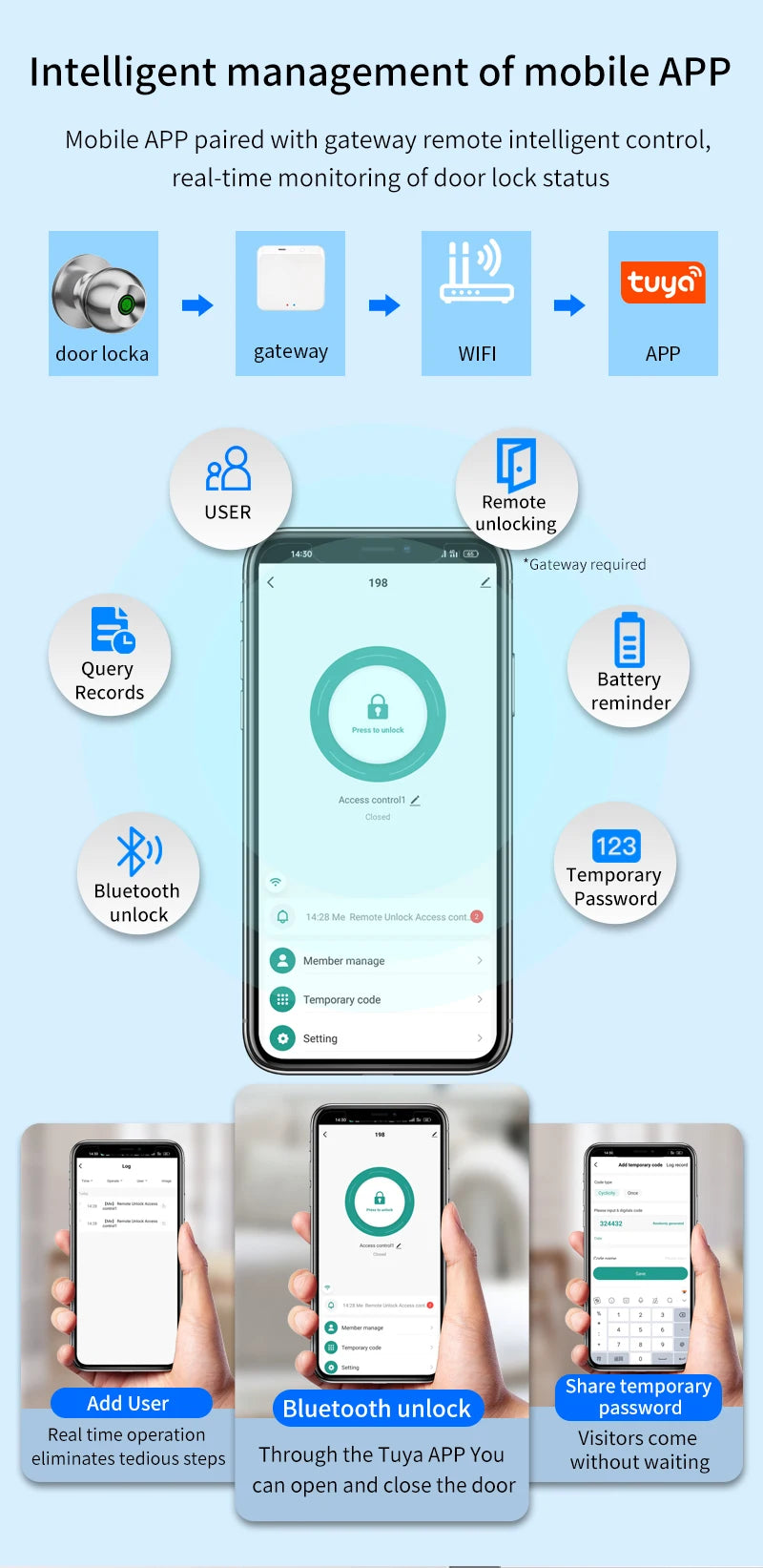

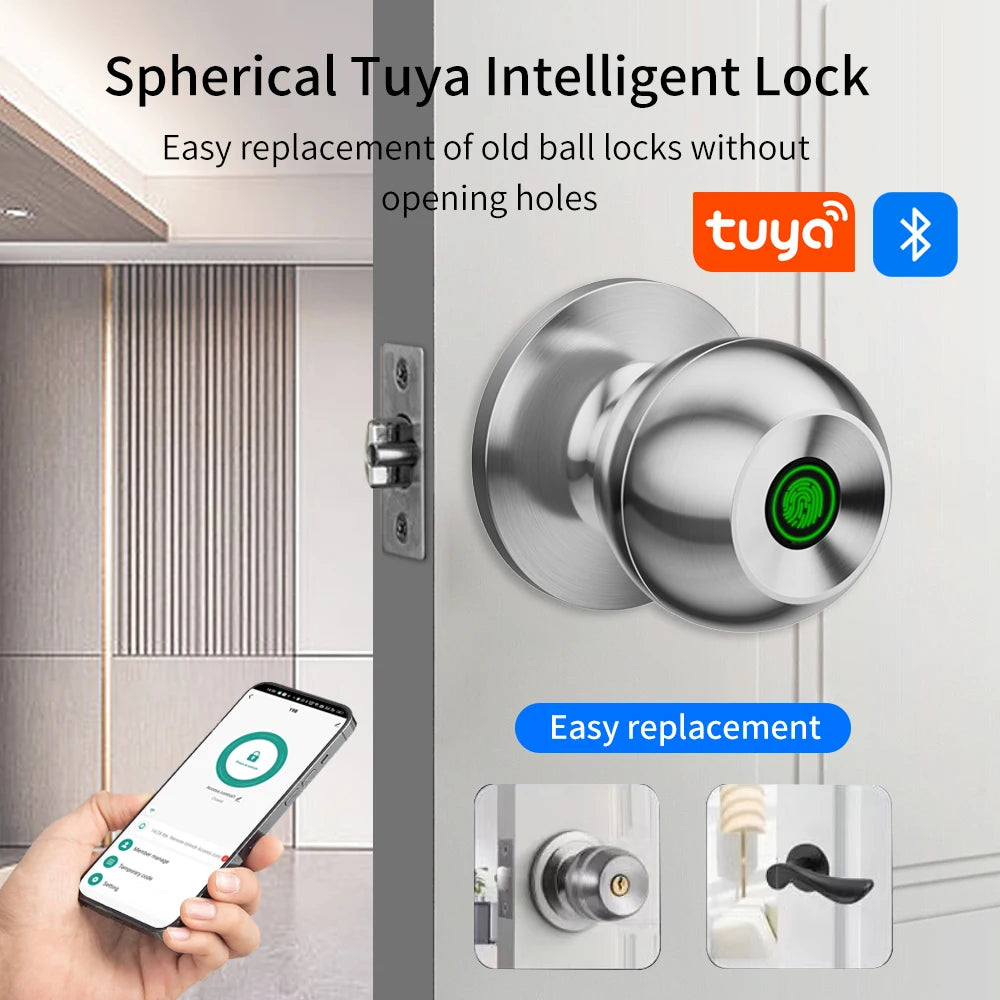

Smart home platform: Tuya

Sound promp: Buzzer prompts navigation

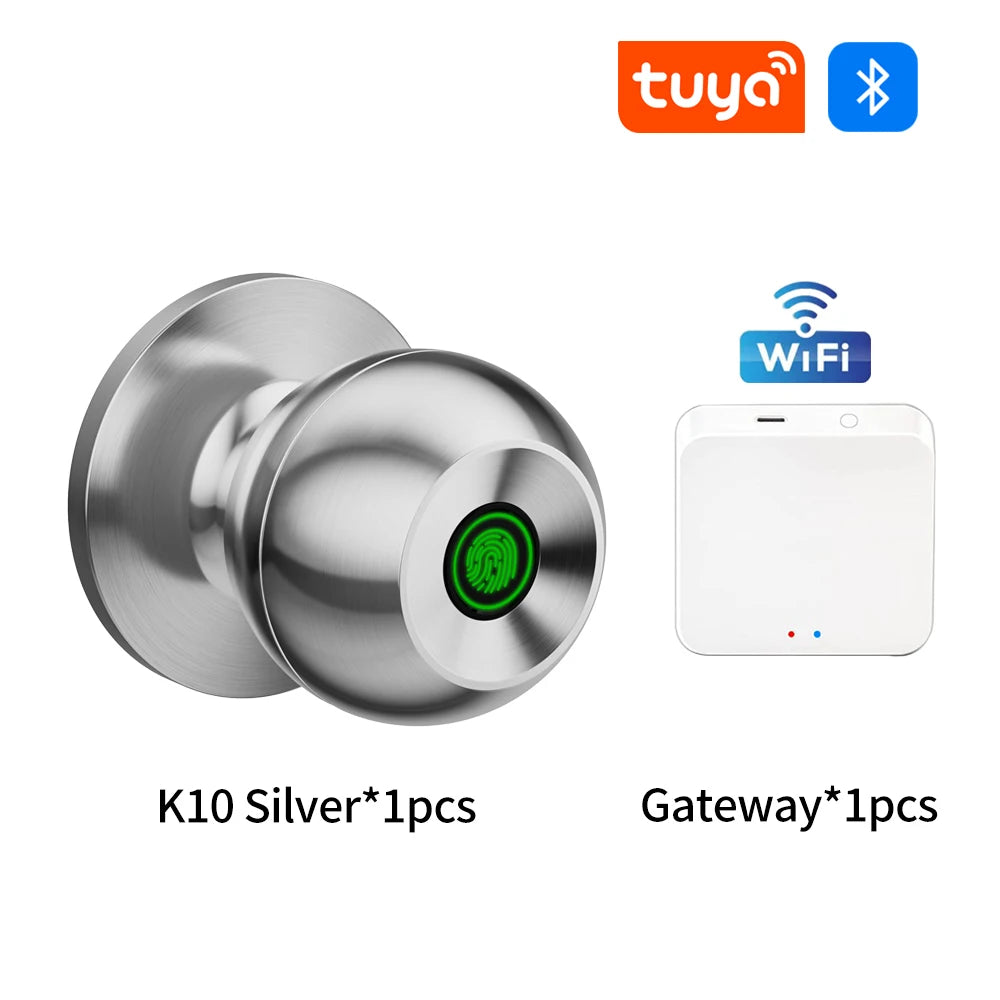

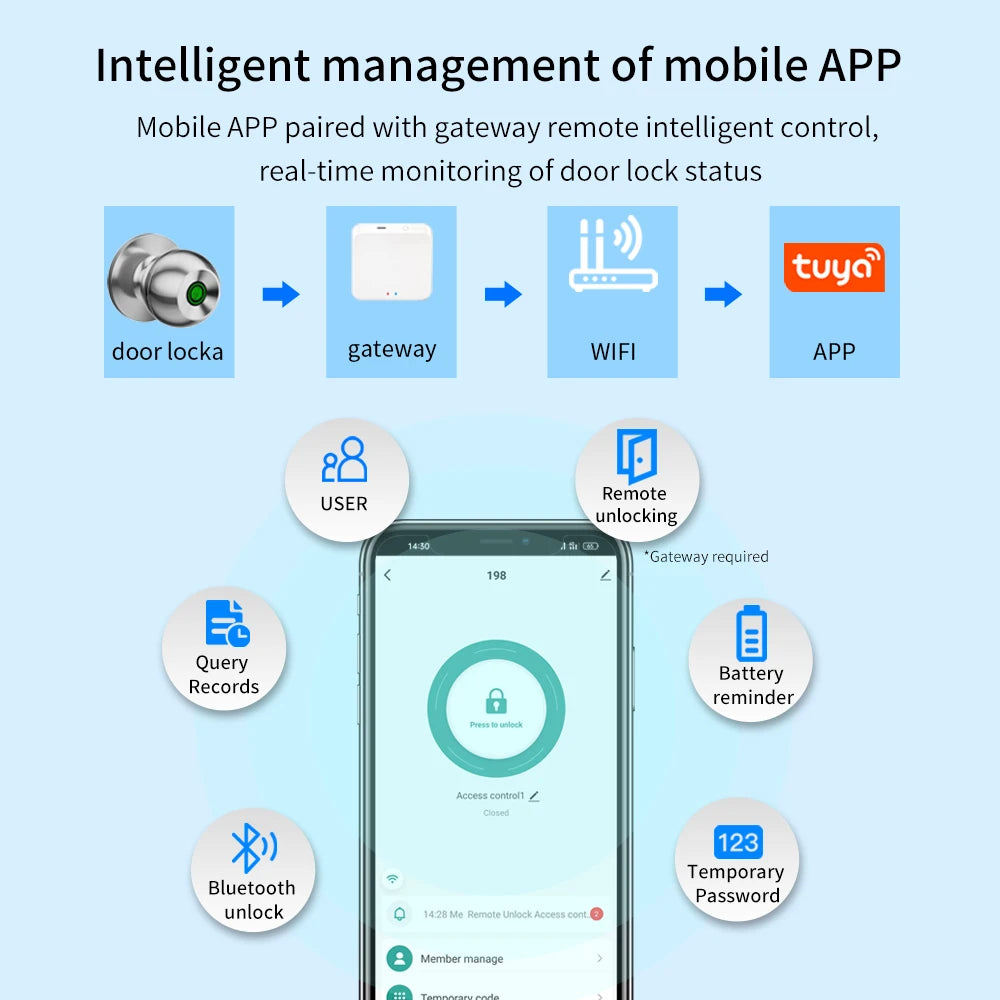

Special Features: Support Gateway

Standby power consumption: Standby static current ≤ 90uA

Suitable Door Type: Wooden Door

Suitable for Mortise: Other

Universal lock body: American standard single tongue lock (60-70 adjustabl

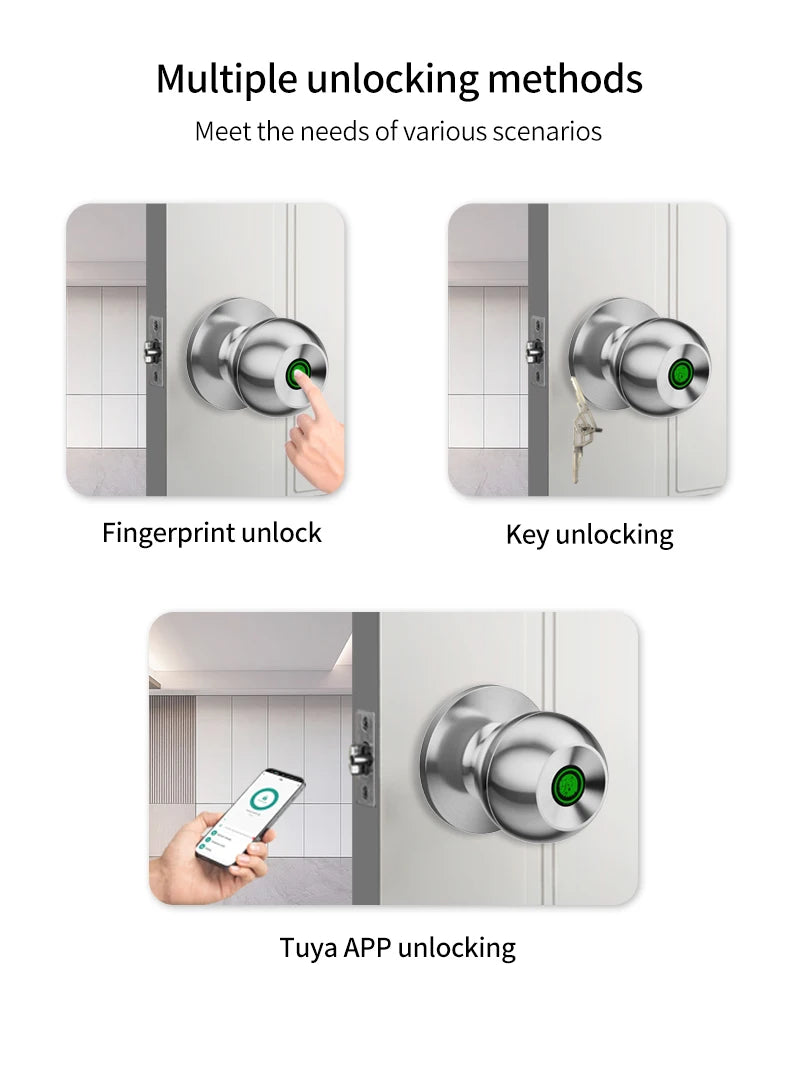

Unlocking method: Key Tuya Bluetooth APP Fingerprint

Ways To Unlock: App,Mechanical Keys,FINGERPRINT

Working current: Average working current: ≤ 350mA

electric machinery: M10 motor

manufacturer: Lucking Door

model: K10
